ADVANCED VISUAL DOCKING GUIDANCE SYSTEM

Design Concept of SYT A-VDGS



◆ The SYT Docking System provides relevant, effective and reliable information by visual means to pilots who are parking aircraft. The SYT Docking System makes them unblocked.


◆ The SYT Docking System can safely direct the aircraft to park at the precise parking position at the apron. SYT uses a 3-axis laser range finder, and provides docking guidance information to both pilot and co-pilot. Since the azimuth guidance information is displayed through an LED display, pilots can easily read this information.



◆ In addition, SYT can compare the aircraft approaching to the parking position stop line with all types of aircraft in the database. When an aircraft which is different from the selected aircraft type approaches the parking position stop line, the system can alert the pilot and the manager of the wrong model simultaneously.

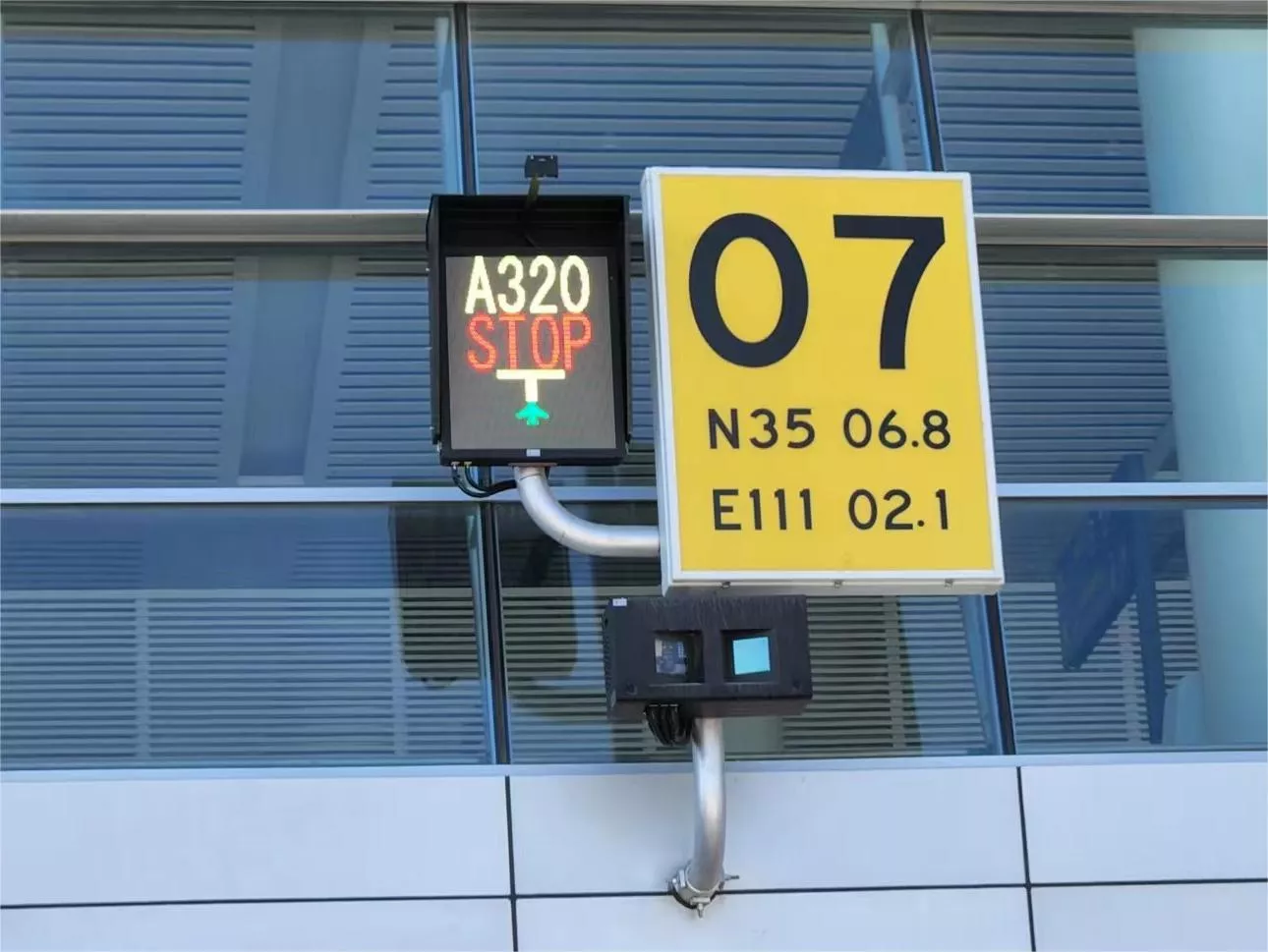

◆ The main display console is mounted on the wall of terminal building or on a pole. The device is aligned and perpendicular to the extension line of the aircraft docking center and close to the aircraft stop line.



◆ Align the laser component of the docking system with J-line, and determine the height of the main display console, so that pilots of any type of aircraft can easily see guidance information.



◆ After the main display console is fixed, the system can perform laser scanning and initialization setup to adjust the system to the optimal state and ensure accurate docking guidance.

SYT A-VDGS TECHNICAL ADVANTAGE

◆ The docking can be carried out by either the pilot or the co-pilot.

◆ Warning message will be displayed if the aircraft approaching the gate doesn't match the selected type.

◆ Intuitional azimuth bar display format is used with a highly visible large symbol.

◆ Complete style display is used in the operation interface to improve the clarity of information display.

◆ Dual surveillance camera design for docking procedures checkup.

◆ Remote support, upgrades, and commissioning can be performed with internet.

◆ An extremely detailed log file presents all the status during every docking procedure.

◆ An optional computer host and GOS(Gate Operation System) can be used for status reporting and docking system control.

◆ Optional interlock mechanisms, to prevent the docking guide procedure from starting if the bridge hasn't stopped.

◆ Optional chock on/off time recording function, to easily know docking time.

◆ Fully comply with ICAO Annex 14 recommendations.

CONTROL SOFTWARE OF SYT A-VDGS

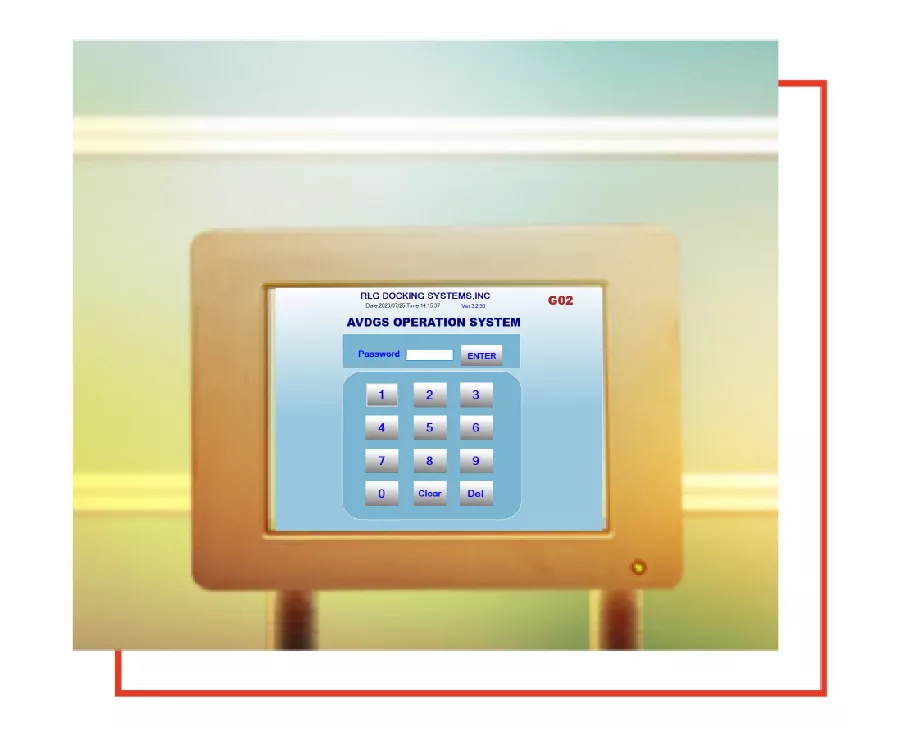

◆ Simple and practical software.

◆ Touch screen with Windows computer.

◆ Real-time log file with details of each procedure.

◆ Remote support service with internet.

◆ Display the direction and speed of guiding.

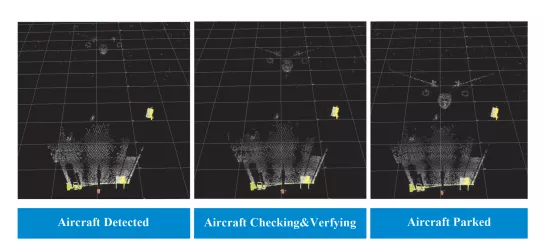

Lidar Point Cloud For VDGS:
